A SharedEntity shares its data off another Entity. More...

Inheritance diagram for SharedEntity:

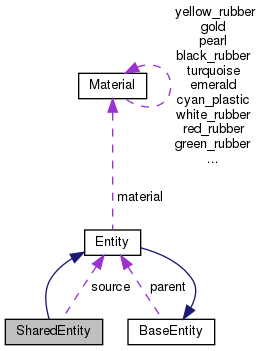

Collaboration diagram for SharedEntity:

Public Member Functions
	SharedEntity (Entity &src)
	Create a SharedEntity from src. More...

virtual void	mergeData ()
	Does nothing. Everything is done by source's Entity::mergeData. More...

virtual void	createBuffers ()
	Does nothing. Copies the buffers created by source's Entity::createBuffers. More...

Public Member Functions inherited from Entity
	Entity (const glm::vec3 &pos=glm::vec3(0))
	Create an entity centered at pos. More...

	Entity (const Entity &other)
	Create an entity from data copied from other. More...

	~Entity ()

void	translate (const glm::vec3 &d=glm::vec3(0))
	Translate (move,shift) the entity. More...

void	translate (float dx=0, float dy=0, float dz=0)
	Translate (move, shift) the entity. More...

void	rotate (float rad=0, glm::vec3 axis=glm::vec3(0))
	Rotate the entity. More...

void	scale (const glm::vec3 &s=glm::vec3(1))
	Scale the entity. More...

void	scale (float sx=1, float sy=std::nanf(""), float sz=std::nanf(""))
	Scale the entity. More...

void	transform (const glm::mat4 &m)
	Transform the entity. More...

void	applyTransform ()
	Transform the vertices permanently. More...

void	add (BaseEntity &e)
	Add an Entity or Light as a child of the entity. More...

glm::mat4	getMatM ()
	Get the model matrix. More...

Public Member Functions inherited from BaseEntity
virtual	~BaseEntity ()

Public Attributes
Entity *	source = nullptr
	The source Entity whose data and buffers are used. More...

Public Attributes inherited from Entity
GLuint	VAO = 0
	Vertex array. More...

GLuint	VBO = 0
	Vertex buffer. More...

GLuint	EBO = 0
	Index buffer. More...

bool	dynamic = false
	If true, the material is dynamic, ie. vertices might change during runtime. More...

std::vector< GLfloat >	vertices
	Vertices. More...

std::vector< GLfloat >	normals
	Normals. More...

std::vector< GLfloat >	uvs
	Texture coordinates. More...

std::vector< GLfloat >	merged
	The final combination of vertices, normals, and uvs. More...

std::vector< GLuint >	indices
	Indices. More...

glm::vec3	position
	Position of the entity, the entity is centered here. More...

glm::mat4	model
	The model matrix for the entity. This is the M part of the MVP matrix. This is responsible for all the transformations of this entity. More...

Material	material
	Material for shading this entity. More...

std::vector< BaseEntity * >	children
	Children of this entity. More...

Public Attributes inherited from BaseEntity
Entity *	parent = nullptr
	Parent of the entity, whose child this is. All transformations of the parent is also applied to the child. More...

Detailed Description

A SharedEntity shares its data off another Entity.

Since all entities need their separate data, they also create their separate buffers. Say, you've two cubes, they'll have the same vertex data, but will be loaded twice. SharedEntity intends to optimize this by using the buffers from another Entity whose data has already been loaded. The source entity's buffers must have been created before they can be used.

Warning: This class is unstable and might be removed in future.

Constructor & Destructor Documentation

◆ SharedEntity()

SharedEntity ( Entity & src )

Create a SharedEntity from src.

Parameters

src	The Entity to share from.

Member Function Documentation

◆ createBuffers()

void createBuffers ( )

virtual

Does nothing. Copies the buffers created by source's Entity::createBuffers.

For this to work, the source's buffer must have been create before this is called. This must either be done manually, or the Entity tree must be arranged in such a way that the DFS traversal in Scene::prepare gets to the source before itself.

Reimplemented from Entity.

◆ mergeData()

void mergeData ( )

virtual

Does nothing. Everything is done by source's Entity::mergeData.

Reimplemented from Entity.

Member Data Documentation

◆ source

Entity* source = nullptr

The source Entity whose data and buffers are used.

The documentation for this class was generated from the following files:

AGL/entity.h
AGL/entity.cpp
