Entity Class Reference

The Entity; basically all visible objects in AGL. More...

Inheritance diagram for Entity:

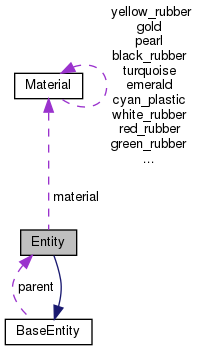

Collaboration diagram for Entity:

Public Member Functions
	Entity (const glm::vec3 &pos=glm::vec3(0))
	Create an entity centered at pos. More...
	Entity (const Entity &other)
	Create an entity from data copied from other. More...
	~Entity ()
void	translate (const glm::vec3 &d=glm::vec3(0))
	Translate (move,shift) the entity. More...
void	translate (float dx=0, float dy=0, float dz=0)
	Translate (move, shift) the entity. More...
void	rotate (float rad=0, glm::vec3 axis=glm::vec3(0))
	Rotate the entity. More...
void	scale (const glm::vec3 &s=glm::vec3(1))
	Scale the entity. More...
void	scale (float sx=1, float sy=std::nanf(""), float sz=std::nanf(""))
	Scale the entity. More...
void	transform (const glm::mat4 &m)
	Transform the entity. More...
void	applyTransform ()
	Transform the vertices permanently. More...
void	add (BaseEntity &e)
	Add an Entity or Light as a child of the entity. More...
virtual void	mergeData ()
	Merge the vertices, normals and uvs into a single merged array. More...
virtual void	createBuffers ()
	Create all the buffers for rendering. More...
glm::mat4	getMatM ()
	Get the model matrix. More...
Public Member Functions inherited from BaseEntity
virtual	~BaseEntity ()

Public Attributes
GLuint	VAO = 0
	Vertex array. More...
GLuint	VBO = 0
	Vertex buffer. More...
GLuint	EBO = 0
	Index buffer. More...
bool	dynamic = false
	If true, the material is dynamic, ie. vertices might change during runtime. More...
std::vector< GLfloat >	vertices
	Vertices. More...
std::vector< GLfloat >	normals
	Normals. More...
std::vector< GLfloat >	uvs
	Texture coordinates. More...
std::vector< GLfloat >	merged
	The final combination of vertices, normals, and uvs. More...
std::vector< GLuint >	indices
	Indices. More...
glm::vec3	position
	Position of the entity, the entity is centered here. More...
glm::mat4	model
	The model matrix for the entity. This is the M part of the MVP matrix. This is responsible for all the transformations of this entity. More...
Material	material
	Material for shading this entity. More...
std::vector< BaseEntity * >	children
	Children of this entity. More...
Public Attributes inherited from BaseEntity
Entity *	parent = nullptr
	Parent of the entity, whose child this is. All transformations of the parent is also applied to the child. More...

Detailed Description

The Entity; basically all visible objects in AGL.

Entity consists of anything that is visible on the scene. The entities consists of

• vertices: Each vertex is a point on the 3D coordinate. A shape consists of multiple vertices connected by edges. Three such adjacent edges (ie. three vertices) combines to form a triangular face of the entity.
• normals: Each of the vertices can consist of a normal, a 3D vector pointing perpendicularly away from the surface that defines the surface and possibly it's orientation. Normals are generally used for lighting calculations.
• uvs (texture coordinates): Each of the vertices can also contain a 2D texture coordinate. This is used to map a texture on the surface of the entity.
• indices: Indices are a set of triplets of index, each defining a face of the entity. Since an entity can only have triangular faces with three vertices, each triplet of indices defines a single face. The index is formed with the 0-indexed position of the vertices. For example, a triplet of (0, 1, 2) defines the face formed by the vertices at the first, second and third position in the vertices array.

Constructor & Destructor Documentation

Entity() [1/2]

Entity

(

const glm::vec3 &

pos = glm::vec3(0)

)

Create an entity centered at pos.

Parameters

pos	Position of the entity.

Entity() [2/2]

Entity

(

const Entity &

other

)

Create an entity from data copied from other.

Parameters

other

Another entity for the copy constructor.

~Entity()

~Entity

(

)

Member Function Documentation

add()

void add

(

BaseEntity &

e

)

Add an Entity or Light as a child of the entity.

Parameters

e	Entity or Light to add.

applyTransform()

void applyTransform

(

)

Transform the vertices permanently.

After this operation, all the transformations will be applied to all the vertices and normals. The model matrix will reset to an identity matrix.

createBuffers()

void createBuffers ( )

virtual

Create all the buffers for rendering.

Reimplemented in SharedEntity.

getMatM()

glm::mat4 getMatM

(

)

Get the model matrix.

Returns

The model matrix after accounting for the shift due to position and parent transformations.

mergeData()

void mergeData ( )

virtual

Merge the vertices, normals and uvs into a single merged array.

Reimplemented in SharedEntity.

rotate()

void rotate	(	float	rad = 0,
		glm::vec3	axis = glm::vec3(0)
	)

Rotate the entity.

Parameters

rad	Angle to rotate by, in radians.
axis	Axis of rotation.

scale() [1/2]

void scale

(

const glm::vec3 &

s = glm::vec3(1)

)

Scale the entity.

Parameters

s	Vector to scale by.

scale() [2/2]

void scale	(	float	sx = 1,
		float	sy = std::nanf(""),
		float	sz = std::nanf("")
	)

Scale the entity.

Parameters

sx	Amount to scale along the x-axis.
sy	Amount to scale along the y-axis.
sz	Amount to scale along the z-axis.

If sy and sz is unspecified, they default to sx. If only sz is unspecified, it defaults to 1.

transform()

void transform

(

const glm::mat4 &

m

)

Transform the entity.

Parameters

m	Matrix to transform by.

translate() [1/2]

void translate

(

const glm::vec3 &

d = glm::vec3(0)

)

Translate (move,shift) the entity.

Parameters

d	Vector to translate by.

translate() [2/2]

void translate	(	float	dx = 0,
		float	dy = 0,
		float	dz = 0
	)

Translate (move, shift) the entity.

Parameters

dx	Amount to translate along the x-axis.
dy	Amount to translate along the y-axis.
dz	Amount to translate along the z-axis.

Member Data Documentation

children

std::vector<BaseEntity*> children

Children of this entity.

dynamic

bool dynamic = false

If true, the material is dynamic, ie. vertices might change during runtime.

EBO

GLuint EBO = 0

Index buffer.

indices

std::vector<GLuint> indices

Indices.

material

Material material

Material for shading this entity.

merged

std::vector<GLfloat> merged

The final combination of vertices, normals, and uvs.

model

glm::mat4 model

The model matrix for the entity. This is the M part of the MVP matrix. This is responsible for all the transformations of this entity.

normals

std::vector<GLfloat> normals

Normals.

position

glm::vec3 position

Position of the entity, the entity is centered here.

uvs

std::vector<GLfloat> uvs

Texture coordinates.

VAO

GLuint VAO = 0

Vertex array.

VBO

GLuint VBO = 0

Vertex buffer.

vertices

std::vector<GLfloat> vertices

Vertices.

---

The documentation for this class was generated from the following files:

• AGL/entity.h
• AGL/entity.cpp
