Light Class Reference

Light, adds reality to the scene. More...

Inheritance diagram for Light:

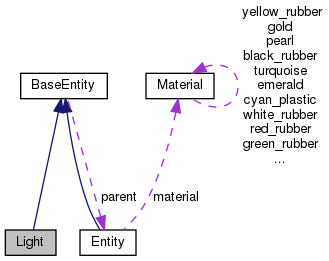

Collaboration diagram for Light:

Public Member Functions
	Light (const glm::vec3 &pos=glm::vec3(-2, 3, 2), const glm::vec4 &color=glm::vec4(1))
	Creates a light. More...
	Light (const glm::vec3 &pos=glm::vec3(-2, 3, 2), float r=1, float g=1, float b=1, float a=1)
	See Light. More...
void	setColor (glm::vec4 color=glm::vec4(1))
	Set color of the light. More...
void	setColor (float r=1, float g=1, float b=1, float a=1)
	Set light color. See setColor and Light(const glm::vec3&, float, float, float, float). More...
glm::vec4	getPos ()
	Get the position of the light. More...
Public Member Functions inherited from BaseEntity
virtual	~BaseEntity ()

Public Attributes
glm::vec4	ambient
	Ambient, illuminates everything. More...
glm::vec4	diffuse
	Diffuse, illuminates surfaces facing the light. More...
glm::vec4	specular
	Specular, reflects from surface. More...
glm::vec4	position
	Position (direction) of the light. More...
glm::vec3	spotDirection
	Direction of spotlight. More...
float	spotExponent = 0
	Effect of spotlight. More...
float	spotCosCutoff = -1
	Cosine of angle of spotlight. (range: [1, 0], -1 means disabled) More...
float	constantAttenuation = 1
	Constant attenuation. More...
float	linearAttenuation = 0
	Linear attenuation. More...
float	quadraticAttenuation = 0
	Quadratic attenuation. More...
Public Attributes inherited from BaseEntity
Entity *	parent = nullptr
	Parent of the entity, whose child this is. All transformations of the parent is also applied to the child. More...

Detailed Description

Light, adds reality to the scene.

These are different kinds of lights that can be added to the scene. There are mainly three kinds of light,

• Point light: Point lights are positioned and cast light in all directions. For a point light, the fourth component of the position vector should be 1.
• Directional light: Directional lights originates at infinity and propagates straight in a certain direction. For a directional light, the fourth component of the position vector should be 0.
• Spotlight: Spotlights are positioned and cast light in a cone. For a spotlight, the spotCosCutoff should be between 0 and 1.

Constructor & Destructor Documentation

Light() [1/2]

Light	(	const glm::vec3 &	pos = glm::vec3(-2, 3, 2),
		const glm::vec4 &	color = glm::vec4(1)
	)

Creates a light.

Parameters

pos	Position of the light.
color	Color of the light.

Creates a point light. To create other kinds of light, use the constructor-like functions.

See also

DirectionalLight

Light() [2/2]

Light	(	const glm::vec3 &	pos = glm::vec3(-2, 3, 2),
		float	r = 1,
		float	g = 1,
		float	b = 1,
		float	a = 1
	)

See Light.

Parameters

pos	Position of the light.
r	Red.
g	Green.
b	Blue.
a	Alpha.

Member Function Documentation

getPos()

glm::vec4 getPos ( )

inline

Get the position of the light.

Returns

The position after accounting for the parent transformations.

setColor() [1/2]

void setColor

(

glm::vec4

color = glm::vec4(1)

)

Set color of the light.

Parameters

color

Color to set.

setColor() [2/2]

void setColor	(	float	r = 1,
		float	g = 1,
		float	b = 1,
		float	a = 1
	)

Set light color. See setColor and Light(const glm::vec3&, float, float, float, float).

Member Data Documentation

ambient

glm::vec4 ambient

Ambient, illuminates everything.

constantAttenuation

float constantAttenuation = 1

Constant attenuation.

diffuse

glm::vec4 diffuse

Diffuse, illuminates surfaces facing the light.

linearAttenuation

float linearAttenuation = 0

Linear attenuation.

position

glm::vec4 position

Position (direction) of the light.

quadraticAttenuation

float quadraticAttenuation = 0

Quadratic attenuation.

specular

glm::vec4 specular

Specular, reflects from surface.

spotCosCutoff

float spotCosCutoff = -1

Cosine of angle of spotlight. (range: [1, 0], -1 means disabled)

spotDirection

glm::vec3 spotDirection

Direction of spotlight.

spotExponent

float spotExponent = 0

Effect of spotlight.

---

The documentation for this class was generated from the following files:

• AGL/entity.h
• AGL/entity.cpp
